Product Specification

Use: Universal

Use: Lighting

Use: Electric Door

Use: Automated curtains

Use: Switch

Wireless Communication: RF

Model Number: WL102-341

Package: Yes

Channel: 1

Frequency: 433 MHz

Support APP: No

Brand Name: Diese

Working voltage: DC 2-3.6V

Quiescent Current: 1uA

transfer rate: 20KHz

Working temperature: -30~+80 degrees

Transmit deviation: +/- 7. 5KHZ / narrow-band emission

Receiving Sensitivity: larger than 11dBm

Size: 16* 12 * 6(mm)

RF Operating mode: ASK /OOK superheterodyne wireless reception

Description:

RM19411534193324996


HTB1gTE9XijrK1RjSsplq6xHmVXas
Product description
433mhz RF Wireless Transmitter RF remote control Module Small Size Low Power for remote control adruino DIY remote control
  Product Application Area
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
HTB1rmDIKeGSBuNjSspbq6AiipXaZ

Product Description
WL102-341 transmitter module is UHF ASK modulated transmitters, support ASK and OOK modulation. The transmitter module integrates an analog PLL circuit and ASK modulation circuit, with a high level of integration, etc., can be applied with a short-range wireless communications. Operating frequency 433MHz, transmit power is greater than 11dBm.

Applications
  • 1.wireless power switch, socket, remote control switch, receiver module,
  • 2. access control, electric cars, motorcycles, automobile anti-theft products, remote door openers, closers control system
  • 3. security, surveillance systems, home security products, electric doors, alarm host, alarm
  • 4. rooms controls, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote rolling gates, sliding door
  • 5. smart home products, remote control curtains, remote MP3, audio


  Package include
Transmitter module (WL102-341) * 1pcs
Note:This package does not include the antenna.

  Technical Data
  • Working voltage  :  DC 2-3.6V
  • Quiescent Current  :  1uA
  • transfer rate  :   20KHz
  • RF frequency  :  433.92 MHz
  • Working temperature  -30~+80 degrees
  • Receiving Sensitivity  :   larger than 11dBm
  • Size  :  16* 12 * 6(mm)
  • RF Operating mode  :  ASK /OOK superheterodyne wireless reception

Pins Instruction

DAT - Wave signal input

OUT - Antenna pin . RF signal output, can directly connect to the antenna.

EN - Enable Pin .But this product EN pin is connected to the power supply, no function

- - Power- ground Pin . The ground wire connects power supply.

+ - Power supply pin . Power Input


This package does not include the antenna.

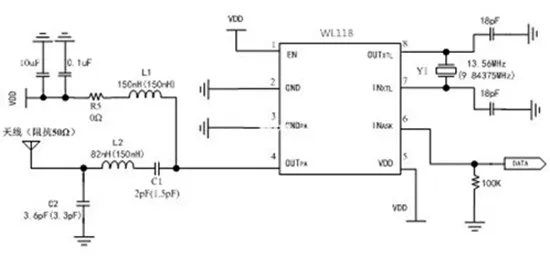

Application example




*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
